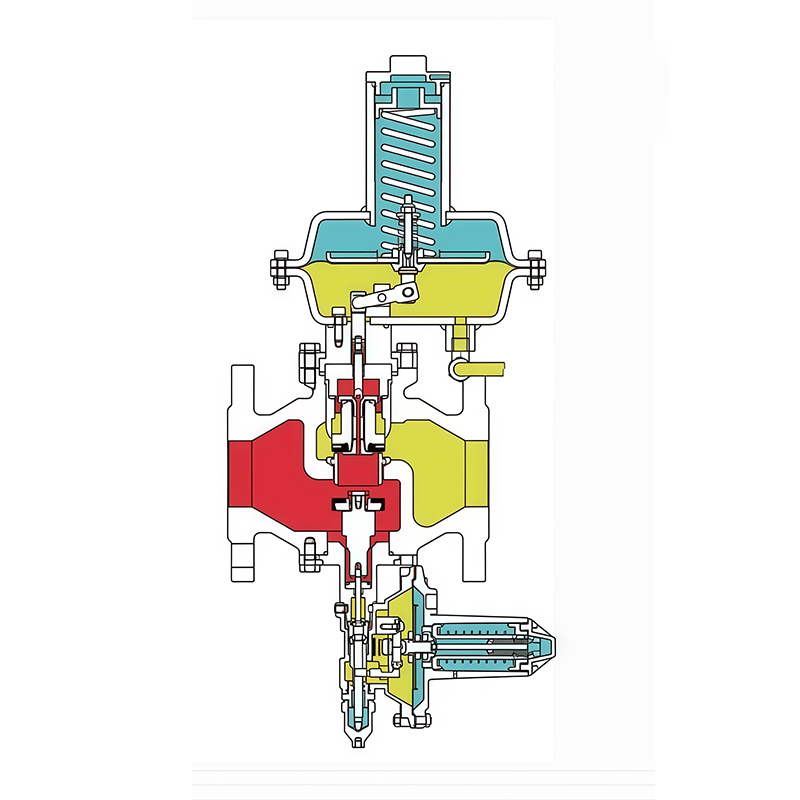

RTZ1-50/0.4/1.6ZGQ Gas Regulator
Get In Touch →Product Application
This product is mainly applicable to gas supply for commercial and industrial users, gas‑fired boilers, industrial furnaces and other direct‑fired equipment as well as regional pressure regulation. It can be assembled into various types of pressure regulating boxes. Applicable media include natural gas, coal gas, liquefied petroleum gas, etc.
Product Features
Internal balancing valve, built‑in safety relief valve, integrated over‑pressure safety shut‑off valve with manual reset, safe and reliable.
Technical Parameters
Inlet Pressure Range P₁: 0.05‑1.4 MPa
Outlet Pressure Range P₂: 15‑300 kPa
Pressure Stabilization Accuracy Class: AC5, AC10
Lock‑up Pressure Class: SG10, SG15
Operating Temperature: -20℃‑60℃
Connection Nominal Diameter: DN50, PN16

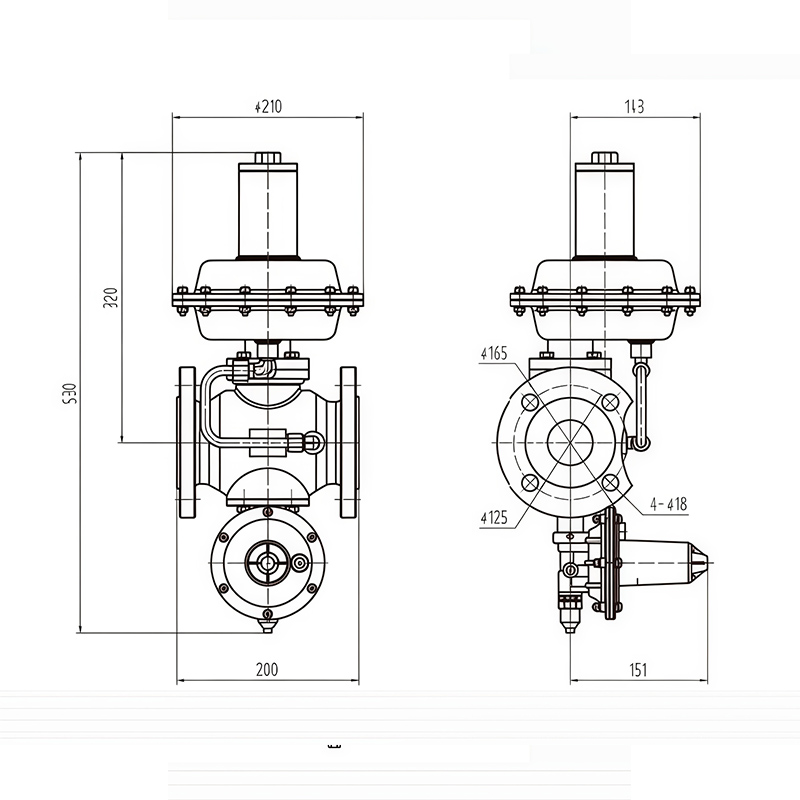

RTZ1‑50/0.4/1.6ZGQ Gas Pressure Regulator
RTZ1‑50/0.4ZGQ Flow Capacity Table (MPa)
Note: The flow values in the table are obtained under standard conditions with natural gas relative density of 0.6.
RTZ1‑50/0.4/1.6ZGQ Gas Pressure Regulator
RTZ1‑50/1.6ZGQ Flow Capacity Table (MPa)
Note: The flow values in the table are obtained under standard conditions with natural gas relative density of 0.6.
