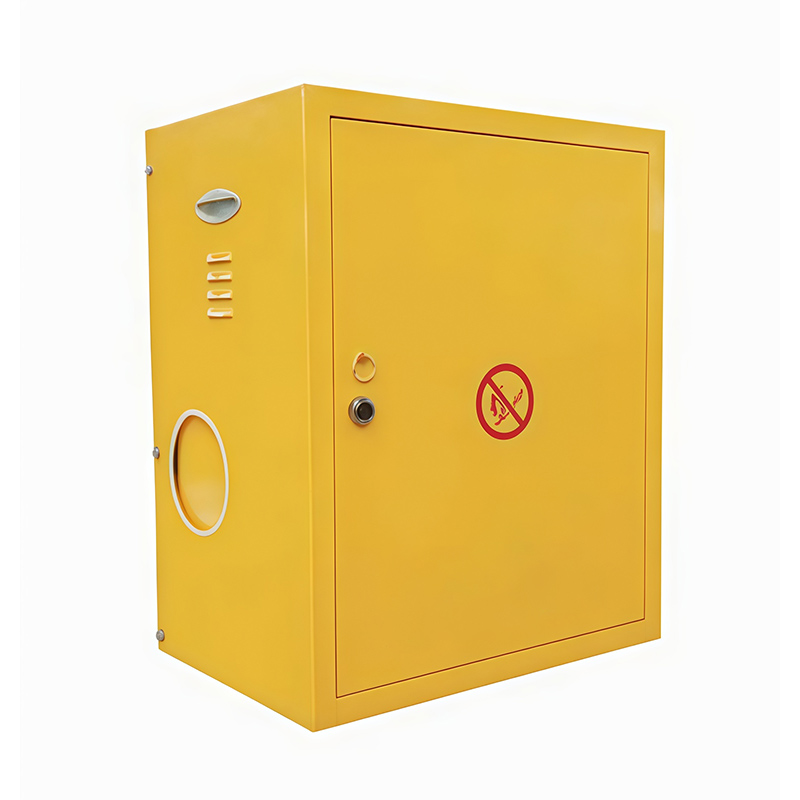

RXO.4/*A-*-LD Series Building Regulator Box
Get In Touch →Product Application:
RX0.4/A‑-LD series building pressure regulating boxes are used for pressure regulation in buildings or unit living areas, and can also be applied for pressure‑regulated gas supply to small‑scale industrial users.
Product Features:
Compact size, large flow capacity and stable performance. Equipped with over‑pressure cut‑off and internal relief functions for high safety and reliability.
Main Technical Parameters:
Inlet Pressure P₁: 0.02‑0.4 MPa
Outlet Pressure P₂: 2‑380 kPa
Pressure Stabilization Accuracy Class: AC5, AC10, AC15
Lock‑up Pressure Class: SG10, SG15, SG20
Operating Temperature: -20℃‑60℃
Connection Size: DN50/DN50, DN50/DN80
RX0.4/A‑-LD Series Building Pressure Regulating Box Installation Dimension Table
Overall Dimension Drawing
