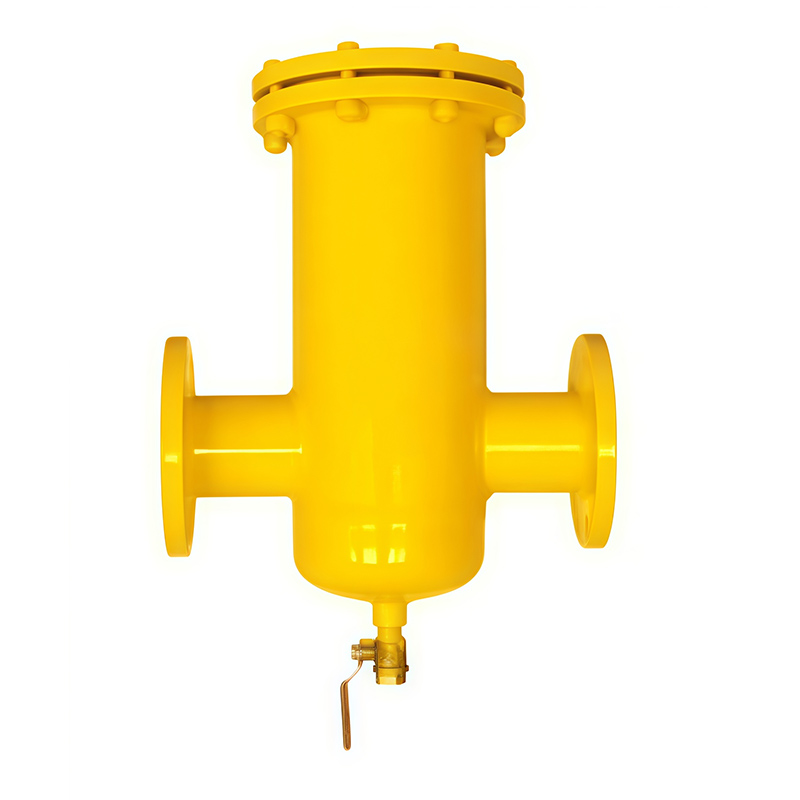

RGL Series Gas Filter

RGL Series Gas Filter

Overview

The RGL series gas filter manufactured by our company is a dry-type gas filter. In the gas transmission and distribution pipeline network system, a gas filter with matching diameter and pressure class must be installed upstream of each pressure regulating equipment to remove solid impurities in pipelines and ensure normal operation of pressure regulating devices.

Product Features

The RGL gas filter adopts folded stainless steel filter screen, which offers large filtration area, no flow cutoff, low pressure drop, easy cleaning, compact structure, convenient installation and maintenance, as well as safe and reliable performance.

Applicable media: natural gas, manufactured gas, liquefied petroleum gas, air, etc.

Filtration precision: 5–50 μm

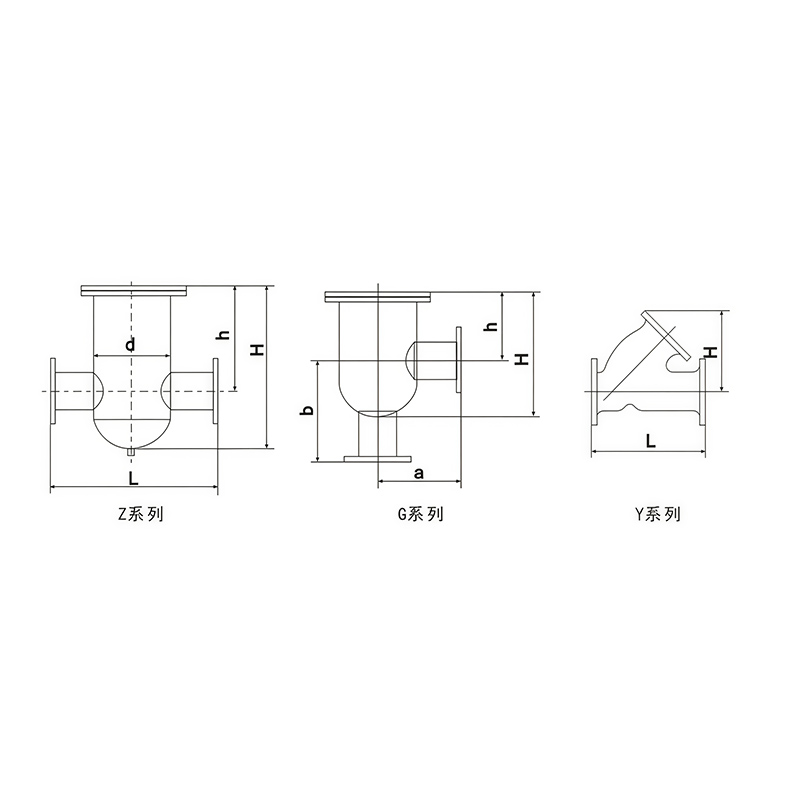

The RGL air filter produced by our company includes more than 20 variants across Z, Y and G series.

Z series: axial straight-through gas filter with large flow capacity and low resistance.

Y series: Y-type filter, suitable for straight and angle pipelines, compact size and light weight.

G series: angle-type gas filter available in vertical and horizontal configurations. It is mainly used together with pressure regulating equipment in various pressure regulation systems, featuring large filtration area and high efficiency.

Product Series

Nominal pressure class (MPa): 0.4, 0.6, 1.0, 1.6, 2.5, 4.0, 6.4

Nominal diameter DN (mm): 50, 65, 80, 100, 125, 150, 200, 250, 300
