YLG Series Gas Filter
Product Application

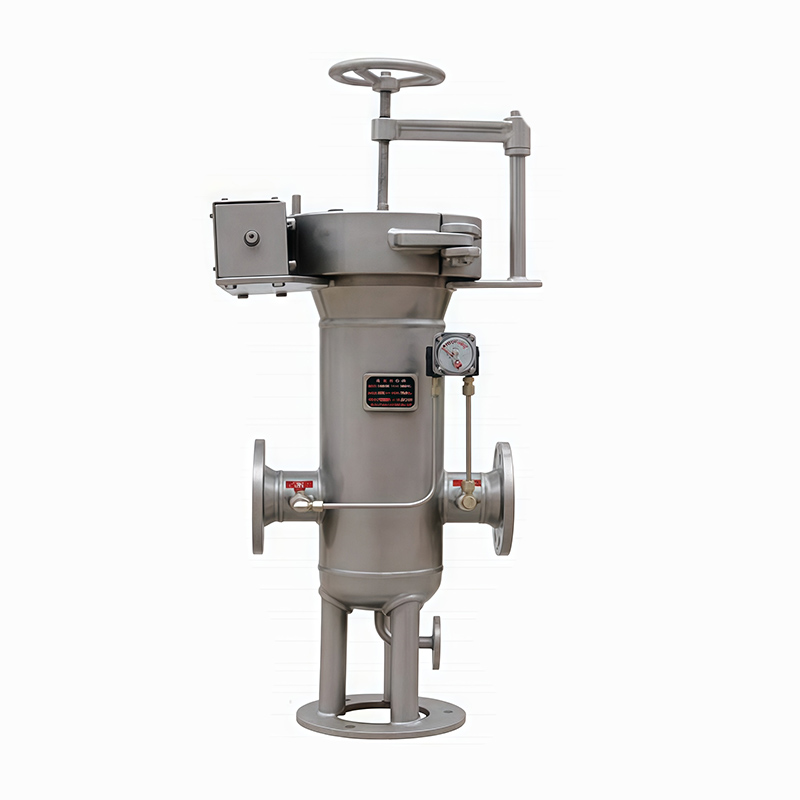

YLG series gas filters are mainly used for purification and filtration of natural gas, coal gas, liquefied petroleum gas and other non-corrosive gas media.
Product Features
Large filtration area, low pressure drop, long service life, high efficiency, and convenient installation, operation and maintenance. It is mainly available in coaxial flanged and angle-type flanged configurations.
This series filter can be equipped with a differential pressure gauge upon request to indicate clogging of the filter element for users to judge cleaning timing. Filter element materials include stainless steel, paper, nylon mesh, etc., with filtration precision ranging from 5 to 50 μm.
Main Technical Parameters
Pressure Class (MPa): 1.6, 2.5, 4.0, 6.3, 10.0
Operating Temperature: -40℃ ~ 80℃
Initial Differential Pressure: ≤10 kPa
Size Range: DN25, DN50, DN80, DN100, DN150, DN200, DN250, DN300, DN400

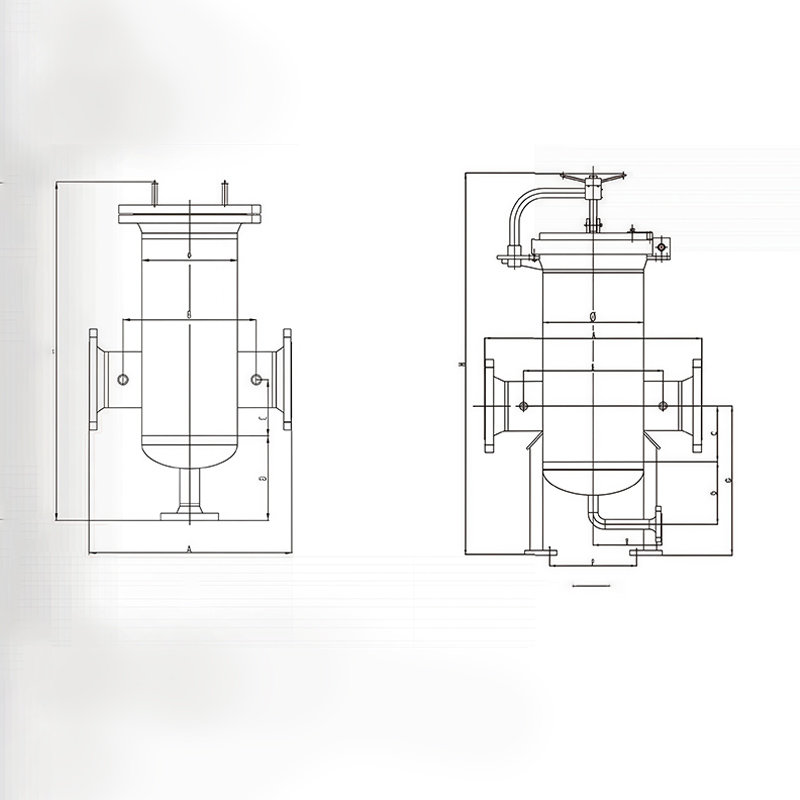

Gas Filter Structural Dimension Comparison Table
| Nominal Diameter | Pressure Class | Working Pressure (Kg) | Shell Diameter | Inlet & Outlet Pipe Diameter | Drain Port Diameter | Shell Length | Structural Dimensions (mm) | Filter Element Model | ||||||||
| A | B | C | D | E | F | G | H | H1 | ||||||||
| DN50 | PN16 | 2 | Φ159 | Φ57 | Φ32 | 370 | 390 | 230 | 125 | 145 | – | – | – | 610 | 680 | G1.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ32 | 330 | 410 | 230 | 125 | 165 | – | – | – | 640 | 720 | ||||
| 23 | ||||||||||||||||
| PN40 | 29 | Φ32 | 330 | 430 | 230 | 125 | 175 | – | – | – | 650 | 740 | ||||
| 36 | ||||||||||||||||
| PN63 | 45 | Φ45 | 330 | 430 | 230 | 125 | 185 | – | – | – | 685 | 790 | ||||
| 56 | ||||||||||||||||
| DN80 | PN16 | 2 | Φ219 | Φ89 | Φ32 | 500 | 480 | 320 | 140 | 185 | – | – | – | 790 | 860 | G2.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ32 | 450 | 510 | 320 | 140 | 200 | – | – | – | 820 | 920 | ||||
| 23 | ||||||||||||||||
| PN40 | 29 | Φ32 | 450 | 520 | 320 | 140 | 205 | – | – | – | 830 | 950 | ||||
| 36 | ||||||||||||||||
| PN63 | 45 | Φ45 | 450 | 560 | 320 | 140 | 215 | – | – | – | 850 | 980 | ||||
| 56 | ||||||||||||||||
| DN100 | PN16 | 2 | Φ273 | Φ108 | Φ32 | 500 | 530 | 380 | 180 | 180 | – | – | – | 850 | 1000 | 2.5 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ32 | 500 | 610 | 380 | 180 | 200 | – | – | – | 920 | 1000 | ||||
| 23 | ||||||||||||||||
| PN40 | 29 | Φ32 | 500 | 630 | 380 | 180 | 200 | – | – | – | 920 | 1000 | ||||
| 36 | ||||||||||||||||
| PN63 | 45 | Φ45 | 500 | 640 | 380 | 200 | 240 | – | – | – | 1000 | 1050 | ||||
| 56 | ||||||||||||||||
| DN150 | PN16 | 2 | Φ325 | Φ159 | Φ45 | 600 | 650 | 450 | 180 | 200 | 220 | 280 | 480 | 1000 | 1200 | G3.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ45 | 600 | 700 | 450 | 180 | 200 | 220 | 280 | 480 | 1000 | 1200 | ||||
| 23 | ||||||||||||||||
| PN40 | 29 | Φ45 | 600 | 740 | 450 | 200 | 200 | 220 | 280 | 500 | 1150 | 1200 | ||||
| 36 | ||||||||||||||||
| PN63 | 45 | Φ57 | 600 | 765 | 450 | 200 | 200 | 220 | 280 | 500 | 1150 | 1200 | ||||
| 56 | ||||||||||||||||
Gas Filter Structural Dimension Comparison Table
| Nominal Diameter | Pressure Class | Working Pressure (Kg) | Shell Diameter | Inlet & Outlet Pipe Diameter | Drain Port Diameter | Shell Length | Structural Dimensions (mm) | Filter Element Model | ||||||||
| A | B | C | D | E | F | G | H | H1 | ||||||||
| DN200 | PN16 | 2 | Φ426 | Φ219 | Φ45 | 800 | 820 | 550 | 240 | 250 | 275 | 385 | 650 | 1600 | 1600 | G4.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ426 | Φ219 | Φ45 | 800 | 830 | 550 | 240 | 250 | 275 | 385 | 650 | 1600 | 1600 | G4.0 | |
| 23 | ||||||||||||||||
| PN40 | 29 | Φ426 | Φ219 | Φ45 | 800 | 850 | 550 | 250 | 250 | 275 | 385 | 650 | 1600 | 1600 | G4.0 | |
| 36 | ||||||||||||||||
| PN63 | 45 | Φ426 | Φ219 | Φ45 | 800 | 900 | 550 | 250 | 250 | 275 | 385 | 650 | 1600 | 1600 | G4.0 | |
| 56 | ||||||||||||||||
| DN250 G5.0 | PN16 | 2 | Φ530 | Φ273 | Φ45 | 950 | 1030 | 690 | 300 | 300 | 325 | 485 | 750 | 1800 | 1900 | G5.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ530 | Φ273 | Φ45 | 950 | 1050 | 690 | 300 | 300 | 325 | 485 | 750 | 1800 | 1900 | G5.0 | |
| 23 | ||||||||||||||||
| PN40 | 29 | Φ530 | Φ273 | Φ57 | 950 | 1070 | 690 | 300 | 300 | 325 | 485 | 750 | 1800 | 1900 | G5.0 | |
| 36 | ||||||||||||||||
| PN63 | 45 | Φ530 | Φ273 | Φ57 | 950 | 1090 | 690 | 300 | 300 | 325 | 485 | 750 | 1800 | 1900 | G5.0 | |
| 56 | ||||||||||||||||
| DN300 G6.0 | PN16 | 2 | Φ630 | Φ325 | Φ57 | 1200 | 1150 | 800 | 350 | 335 | 395 | 595 | 855 | 2100 | 2300 | G6.0 |
| 4 | ||||||||||||||||
| 8 | ||||||||||||||||
| 14 | ||||||||||||||||
| PN25 | 18 | Φ630 | Φ325 | Φ57 | 1200 | 1200 | 800 | 350 | 335 | 395 | 595 | 855 | 2100 | 2300 | G6.0 | |
| 23 | ||||||||||||||||
| PN40 | 29 | Φ630 | Φ325 | Φ57 | 1200 | 1230 | 800 | 350 | 335 | 395 | 595 | 855 | 2200 | 2300 | G6.0 | |
| 36 | ||||||||||||||||
| PN63 | 45 | Φ630 | Φ325 | Φ57 | 1200 | 1250 | 800 | 350 | 335 | 395 | 595 | 855 | 2240 | 2300 | G6.0 | |
| 56 | ||||||||||||||||
Filter Element Specifications
Filter Element Model: G1.0 Filter Size: Φ96/Φ50×165 Filter Surface Area: 0.14 m²
Filter Element Model: G2.0 Filter Size: Φ165/Φ86×270 Filter Surface Area: 0.51 m²
Filter Element Model: G2.5 Filter Size: Φ200/Φ110×283 Filter Surface Area: 0.72 m²
Filter Element Model: G3.0 Filter Size: Φ252/Φ138×320 Filter Surface Area: 1.2 m²
Filter Element Model: G4.0 Filter Size: Φ299/Φ186×415 Filter Surface Area: 1.7 m²
Filter Element Model: G5.0 Filter Size: Φ390/Φ246×470 Filter Surface Area: 2.3 m²
Filter Element Model: G6.0 Filter Size: Φ475/Φ320×625 Filter Surface Area: 4.2 m²
DN50 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 160 | 250 | 320 | 350 | – | – | – | – |
| 0.1 | 180 | 300 | 420 | 450 | – | – | – | – |
| 0.2 | 220 | 480 | 520 | 600 | 680 | – | – | – |
| 0.5 | 350 | 650 | 750 | 900 | 1000 | 1200 | – | – |
| 1.0 | 550 | 750 | 1000 | 1200 | 1300 | 1600 | 2000 | – |
| 2.5 | 650 | 1000 | 1500 | 2400 | 2600 | 3000 | 4500 | 5000 |
| 4.0 | – | – | – | – | – | – | 6000 | 7000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN80 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 300 | 500 | 700 | 720 | – | – | – | – |
| 0.1 | 380 | 600 | 800 | 850 | – | – | – | – |
| 0.2 | 480 | 700 | 900 | 1100 | 1300 | – | – | – |
| 0.5 | 600 | 900 | 1300 | 1550 | 1750 | 2100 | – | – |
| 1.0 | 850 | 1100 | 1800 | 2150 | 2450 | 3000 | 3600 | – |
| 2.5 | 1000 | 1500 | 2500 | 3200 | 4000 | 5000 | 6000 | 7000 |
| 4.0 | – | – | – | – | – | – | 7500 | 9000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN100 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 450 | 650 | 800 | 900 | – | – | – | – |
| 0.1 | 500 | 750 | 900 | 1100 | – | – | – | – |
| 0.2 | 600 | 1000 | 1300 | 1500 | 1700 | – | – | – |
| 0.5 | 800 | 1300 | 2200 | 3100 | 3600 | 4100 | – | – |
| 1.0 | 1100 | 1600 | 3000 | 3500 | 4800 | 5500 | 7600 | – |
| 2.5 | 1600 | 2500 | 3300 | 4300 | 5000 | 6500 | 10000 | 12500 |
| 4.0 | – | – | – | – | – | – | 13000 | 15000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN150 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 1500 | 2500 | 2800 | 3000 | – | – | – | – |
| 0.1 | 1800 | 3000 | 3600 | 3700 | – | – | – | – |
| 0.2 | 2400 | 3800 | 4400 | 4700 | 5000 | – | – | – |
| 0.5 | 2900 | 4200 | 7000 | 8500 | 9500 | 10000 | – | – |
| 1.0 | 3500 | 5100 | 7400 | 9500 | 11000 | 14000 | 17000 | – |
| 2.5 | 5000 | 7500 | 10000 | 13000 | 16000 | 20000 | 23000 | 25000 |
| 4.0 | – | – | – | – | – | – | 30000 | 33000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN200 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 2200 | 3300 | 4500 | 4600 | – | – | – | – |
| 0.1 | 2500 | 4000 | 5500 | 6000 | – | – | – | – |
| 0.2 | 3000 | 5000 | 7000 | 9000 | 9500 | – | – | – |
| 0.5 | 4500 | 7000 | 10000 | 12500 | 15000 | 17500 | – | – |
| 1.0 | 6500 | 10000 | 15000 | 18000 | 20000 | 22000 | 30000 | – |
| 2.5 | 9000 | 14000 | 20000 | 25000 | 30000 | 35000 | 40000 | 50000 |
| 4.0 | – | – | – | – | – | – | 60000 | 70000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN250 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 3500 | 5500 | 7000 | 7500 | – | – | – | – |
| 0.1 | 3750 | 7000 | 9000 | 9000 | – | – | – | – |
| 0.2 | 6000 | 8500 | 12500 | 14000 | 15000 | – | – | – |
| 0.5 | 8500 | 13000 | 17500 | 21000 | 25000 | 28000 | – | – |
| 1.0 | 12000 | 18000 | 25000 | 31000 | 35000 | 40000 | 50000 | – |
| 2.5 | 16000 | 24000 | 35000 | 40000 | 50000 | 55000 | 65000 | 70000 |
| 4.0 | – | – | – | – | – | – | 80000 | 90000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
DN300 Filter Flow Rate Table (Unit: Nm³/h)
| P₁ | Δp | |||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 5 | 7.5 | 10 | 15 | 25 | 50 | |
| 0.05 | 6000 | 9000 | 11000 | 11500 | – | – | – | – |
| 0.1 | 7000 | 10000 | 14000 | 15000 | – | – | – | – |
| 0.2 | 8000 | 13000 | 19000 | 22000 | 23000 | – | – | – |
| 0.5 | 13500 | 20000 | 25000 | 30000 | 35000 | 42000 | – | – |
| 1.0 | 19000 | 28000 | 42000 | 48000 | 50000 | 60000 | 80000 | – |
| 2.5 | 22000 | 35000 | 50000 | 62000 | 70000 | 85000 | 90000 | 110000 |
| 4.0 | – | – | – | – | – | – | 110000 | 150000 |
Notes: Medium: Natural Gas
Δp — Pressure Drop (kPa) P₁ — Inlet Pressure (MPa)
