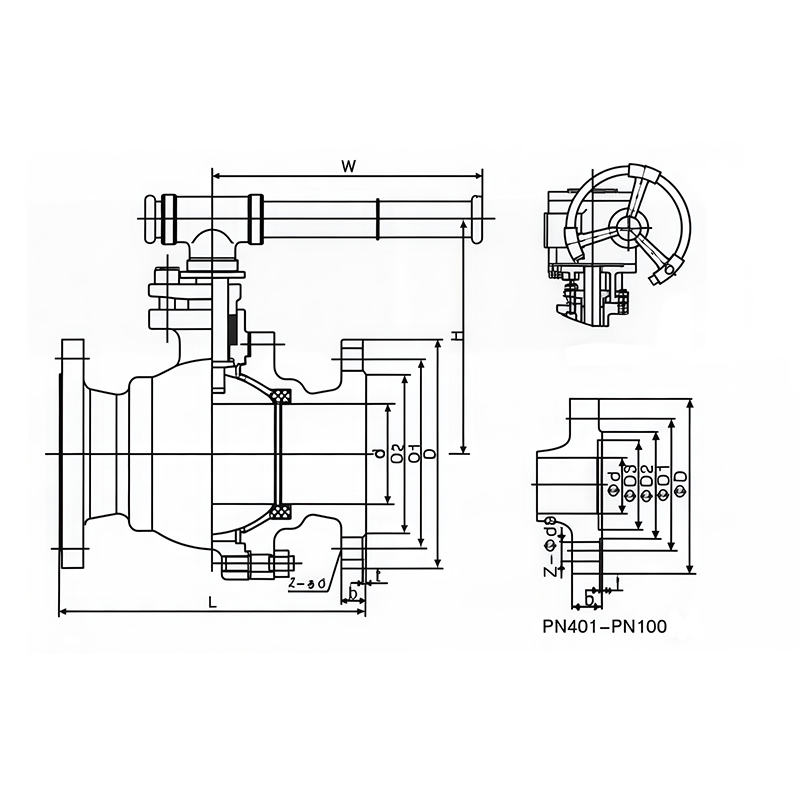

Soft/hard sealed floating ball valve connection dimensions

Home / Product / Soft/hard sealed floating ball valve connection dimensions

Main Overall Dimensions PN1.6MPa Unit: mm

Nominal Pressure	Nominal Diameter	L	d	D	D1	D2	D3	b	f	Z-Φd0	WManual	WGear	HManual	HGear
1.6	15	130	15	95	65	45	—	14	2	4-14	140	—	85	—
	20	140	20	105	75	55	—	14	2	4-14	140	—	90	—
	25	150	25	115	85	65	—	14	2	4-14	160	—	99	—
	32	165	32	135	100	78	—	16	2	4-18	180	—	105	—
	40	180	40	145	110	85	—	16	3	4-18	235	—	126	—
	50	200	50	160	125	100	—	16	3	4-18	250	—	140	—
	65	220	65	180	145	120	—	18	3	4-18	285	—	165	—
	80	250	80	195	160	135	—	20	3	8-18	320	—	178	—
	100	280	100	215	180	155	—	20	3	8-18	350	—	230	380
	125	320	125	245	210	185	—	22	3	8-18	800	—	280	405
	150	360	150	280	240	210	—	24	3	8-23	1000	—	310	460
	200	400	200	335	295	265	—	26	3	12-23	1200	—	350	550
	250	457	250	405	355	320	—	30	3	12-25	1400	—	—	—

Main Overall Dimensions PN2.5, 4.0, 6.3MPa Unit: mm

Nominal Pressure	Nominal Diameter	L	d	D	D1	D2	D3	b	f	Z-Φd0	W Manual	W Gear	H Manual	H Gear
2.5	15	130	15	95	65	45	—	16	2	4-14	140	—	85	—
	20	140	20	105	75	55	—	16	2	4-14	140	—	90	—
	25	150	25	115	85	65	—	16	2	4-14	150	—	99	—
	32	165	32	135	100	78	—	18	2	4-18	180	—	105	—
	40	180	40	145	110	85	—	18	3	4-18	200	—	126	—
	50	200	50	160	125	100	—	20	3	4-18	250	—	140	—
	65	220	65	180	145	120	—	22	3	8-18	300	—	165	—
	80	250	80	195	160	135	—	22	3	8-18	350	—	178	—
	100	280	100	230	190	160	—	24	3	8-23	500	—	230	380
	125	320	125	270	220	188	—	28	3	8-25	800	—	280	405
	150	360	150	300	250	218	—	30	3	8-25	1000	—	310	460
	200	400	200	360	310	278	—	34	3	12-25	1200	—	350	550
	250	457	250	425	370	332	—	38	3	12-30	1400	—	—	—
4.0	15	130	15	95	65	45	51	16	2	4-14	140	—	85	—
	20	140	20	105	75	55	51	16	2	4-14	140	—	90	—
	25	150	25	115	85	65	58	16	2	4-14	150	—	99	—
	32	165	32	135	100	78	66	18	2	4-18	180	—	105	—
	40	180	40	145	110	85	76	18	3	4-18	200	—	126	—
	50	220	50	160	125	100	88	20	3	4-18	250	—	142	—
	65	250	65	180	145	120	110	22	3	8-18	300	—	165	—
	80	280	80	195	160	135	121	22	3	8-18	350	305	178	330
	100	320	100	230	190	160	150	24	3	8-23	500	305	230	380
	125	380	125	270	220	188	176	28	3	8-25	800	305	280	420
	150	400	150	300	250	218	204	30	3	8-25	800	305	310	480
	200	502	200	375	320	282	260	38	3	12-30	1000	400	350	560
6.3	15	140	15	105	75	55	40	18	2	4-14	140	—	79	—
	20	152	20	125	90	68	51	20	2	4-18	140	—	83	—
	25	165	25	135	100	78	58	22	2	4-18	200	—	114	—
	32	200	32	150	110	82	66	24	2	4-23	200	—	120	—
	40	220	40	165	125	95	76	24	3	4-23	250	—	125	—
	50	250	50	175	135	105	88	26	3	4-23	300	—	156	—
	65	280	65	200	160	130	110	28	3	8-23	350	—	172	—
	80	320	80	210	170	140	121	30	3	8-23	500	305	220	390
	100	360	100	250	200	168	150	32	3	8-25	650	305	250	440
