Pig Launcher/Receiver

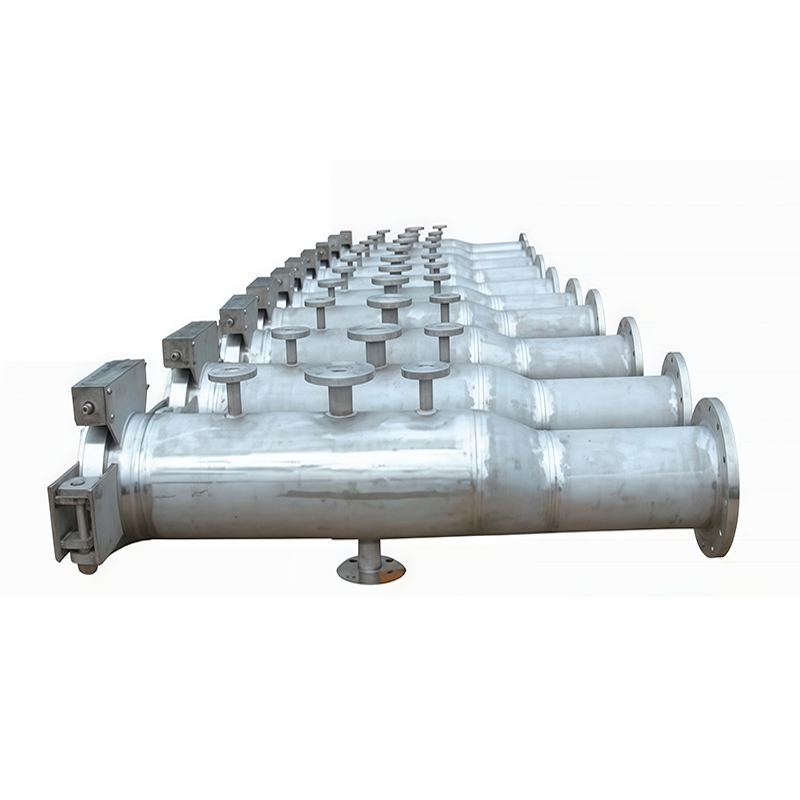

Pig Receiver & Launcher

Pig receiver and launcher barrels are key components of pressure pipeline cleaning equipment. They are installed at both ends of pressure pipelines to launch and receive pipeline pigs. Main components: quick-opening blind plate, barrel, reducer, process nozzle, indicator, saddle support, etc.

Design and Manufacturing Codes & Standards

GB/T150-2024 Pressure Vessels TSG21-2016 Supervision Regulation on Safety Technology for Stationary Pressure Vessels

Material and Component Standards

GB/T713-2023 NB/T47008-2017 HG/T20592~20615-2009

Performance Parameters

Operating Temperature: -40 ~ 80℃ Operating Pressure: ≤10 MPa

Classification

Type I and Type II

Type I: for launching and receiving conventional pigs
Type II: for launching and receiving intelligent pigs Installation type: horizontal

Installation and Connection

The pig receiver and launcher shall be installed horizontally. The center height above ground is generally about 1 meter. The quick-opening blind end of the pig receiver shall be slightly lower with a gradient of 5/1000; the quick-opening blind end of the pig launcher shall be slightly higher with a gradient of 5/1000. The pig receiver and launcher are connected to the underground main pipeline via valves and elbows connected to straight pipe sections. The full bore of the ball valve connecting the pigging assembly to the main pipeline shall match the inner diameter of the pigged pipeline.

A vent valve, safety valve and pressure gauge shall be installed on the upper part near the quick-opening blind of the pig receiver and launcher; a blowdown valve shall be fitted at the bottom, and medium inlet and outlet shall be arranged on the side.

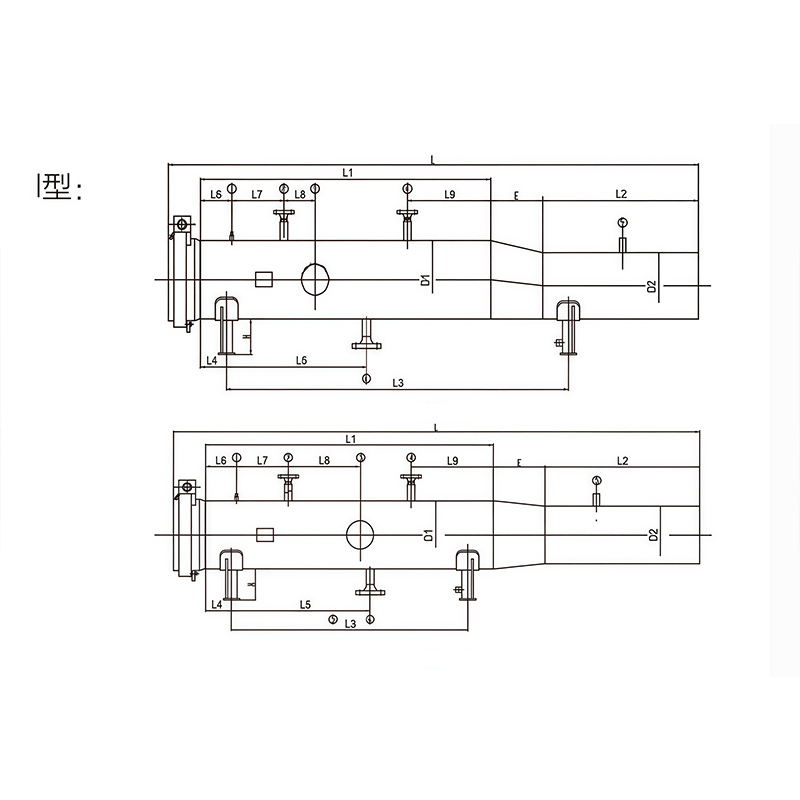

Structural Dimensions of Type I Pig Receiver Barrel

Pig Receiver Specification	Pipeline Outer Diameter (mm)	Structural Dimensions										Nozzle Nominal Size
L	L1	L2	L3	L4	L5	L6	L7	L8	L9	1	2	3	4	5	6
DN150/DN100	Φ108, Φ114	2400	1200	800	800	200	500	150	200	200	200	15	25	80	25	50	50
DN200/DN150	Φ159, Φ168	2400	1200	800	800	200	500	150	300	200	200	15	25	80	25	50	50
DN250/DN200	Φ219	2900	1500	1000	1100	200	600	150	300	300	200	15	32	150	32	50	50
DN325/DN250	Φ273	2900	1500	1000	1100	200	600	200	300	300	200	15	32	200	32	50	50
DN400/DN300	Φ325, Φ323	3600	1800	1200	1400	200	900	200	350	350	200	15	32	250	32	50	50
DN450/DN350	Φ377, Φ355	3800	1800	1200	1400	200	800	200	350	350	200	15	40	300	40	50	80
DN500/DN400	Φ426, Φ406	4400	2000	1500	1500	250	1000	200	350	350	250	15	40	300	40	50	80
DN550/DN450	Φ457	4400	2000	1500	1500	250	1000	200	350	350	250	15	50	350	50	50	80
DN600/DN500	Φ529, Φ508	4600	2200	1800	1600	250	1400	200	350	400	250	15	50	350	50	50	80
DN700/DN600	Φ630, Φ610	4600	2200	1800	1600	250	1400	200	350	400	250	15	50	400	50	50	100
DN800/DN650	Φ660	4900	2500	2000	1900	250	1400	250	350	400	250	15	80	400	30	50	100
DN800/DN700	Φ711, Φ720	4900	2500	2000	1900	300	1400	250	350	400	300	15	80	500	30	50	100
DN850/DN750	Φ762	5300	3000	2200	2400	300	1400	250	400	400	300	15	80	500	30	50	100
DN900/DN800	Φ813, Φ820	5600	3000	2200	2400	300	1400	250	400	500	300	15	100	500	100	50	150
DN1000/DN850	Φ864	6900	3500	2500	2900	300	1600	250	400	500	300	15	100	500	100	50	150
DN1200/DN900	Φ914, Φ920	6900	3500	2500	2900	300	1600	250	400	600	300	15	150	500	150	50	150
DN1200/DN950	Φ965	6800	3500	2500	2900	300	2000	250	400	600	300	15	150	600	150	50	150
DN1200/DN1000	Φ1016, Φ1020	6800	3500	2500	2900	300	2000	250	400	600	300	15	150	600	150	50	150

Structural Dimensions of Type II Pig Launcher Barrel

Pig Launcher Specification	Pipeline Outer Diameter (mm)	Structural Dimensions										Nozzle Nominal Size
L	L1	L2	L3	L4	L5	L6	L7	L8	L9	1	2	3	4	5	6
DN150/DN100	Φ108, Φ114	2400	1200	800	1340	200	700	150	200	300	200	15	25	80	25	50	50
DN200/DN150	Φ159, Φ168	2400	1200	800	1352	200	700	150	300	300	200	15	25	80	25	50	50
DN250/DN200	Φ219	2900	1500	1000	1678	200	850	150	300	400	200	15	32	150	32	50	50
DN325/DN250	Φ273	2900	1500	1000	1703	200	850	200	300	400	200	15	32	200	32	50	50
DN400/DN300	Φ325, Φ323	3600	1800	1200	2130	200	1000	200	400	500	200	15	32	250	32	50	50
DN450/DN350	Φ377, Φ355	3800	1800	1200	2156	200	1000	200	400	500	200	15	40	300	40	50	80
DN500/DN400	Φ426, Φ406	4400	2000	1500	2508	250	1400	200	400	500	250	15	40	300	40	50	80
DN550/DN450	Φ457	4400	2000	1500	2508	250	1400	200	400	550	250	15	50	350	50	50	80
DN600/DN500	Φ529, Φ508	4600	2200	1800	2708	250	1600	200	400	550	250	15	50	350	50	50	80
DN700/DN600	Φ630, Φ610	4600	2200	1800	2810	250	1600	200	400	550	250	15	50	400	50	50	100
DN800/DN650	Φ660	4900	2500	2000	3110	250	1800	250	400	550	250	15	80	400	80	50	100
DN800/DN700	Φ711, Φ720	4900	2500	2000	3110	300	1800	250	400	650	300	15	80	500	80	50	100
DN850/DN750	Φ762	5300	3000	2200	3610	300	1800	250	400	650	300	15	80	500	80	50	100
DN900/DN800	Φ813, Φ820	5600	3000	2200	3610	300	1800	250	400	650	300	15	100	500	100	50	150
DN1000/DN850	Φ864	6800	3500	2500	4110	300	2500	250	400	700	300	15	100	500	100	50	150
DN1200/DN900	Φ914, Φ920	6800	3500	2500	4110	300	2500	250	400	700	300	15	150	500	150	50	150
DN1200/DN950	Φ965	6800	3500	2500	4110	300	2500	250	400	700	300	15	150	600	150	50	150
DN1200/DN1000	Φ1016, Φ1020	6800	3500	2500	4110	300	2500	250	400	700	300	15	150	600	150	50	150
