Cyclone Separator

Home / Product / Cyclone Separator

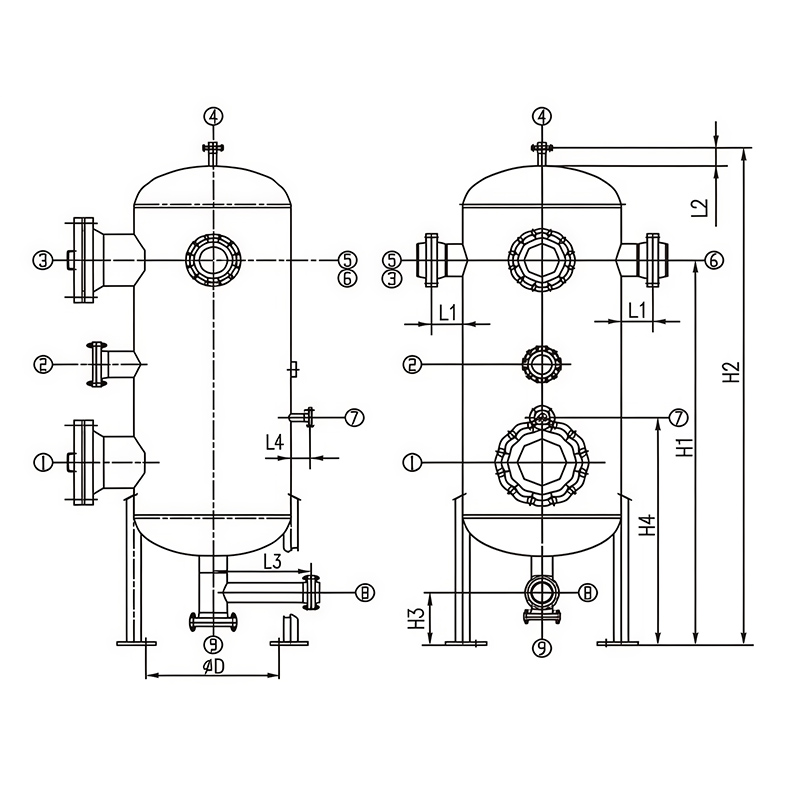

Basic Structure and Dimensions of Cyclone Separator (Unit: mm)

No.	Cylinder Diameter DN	Inlet & Outlet Diameter DN	Structural Dimensions								Nozzle Schedule DN
H1	H2	H3	H4	L1	L2	L3	D	1	2	3	4	5	6	7	8	9
1	400	80	2175	2700	400	1130	200	150	400	Φ312	–	–	150	40	80	80	20	50	65
2	500	100	2100	2740	400	1160	200	150	450	Φ416	–	–	150	40	100	100	20	50	65
3	600	150	2360	3015	400	1215	200	200	540	Φ488	150	100	150	40	150	150	20	50	80
4	700	200	2415	3125	400	1280	200	200	550	Φ653	200	150	200	40	200	200	25	50	80
5	800	250	2528	3393	400	1428	200	200	560	Φ696	250	150	250	50	250	250	25	50	80
6	900	300	2610	3465	400	1655	250	250	560	Φ853	450	200	250	50	300	300	32	65	80
7	1000	350	2737	3622	400	1688	250	250	600	Φ894	450	200	250	50	350	350	32	65	80
8	1100	400	2825	3715	400	1725	250	250	650	Φ952	500	250	250	80	400	400	32	65	80
9	1200	400	2912	3827	400	1875	280	250	700	Φ1072	500	250	250	80	400	400	40	80	100
10	1300	400	2965	3915	400	1940	280	250	760	Φ1255	600	250	250	100	400	400	40	80	100
11	1400	400	3209	4254	400	3275	280	250	7790	Φ1280	600	250	250	100	400	400	40	80	100
