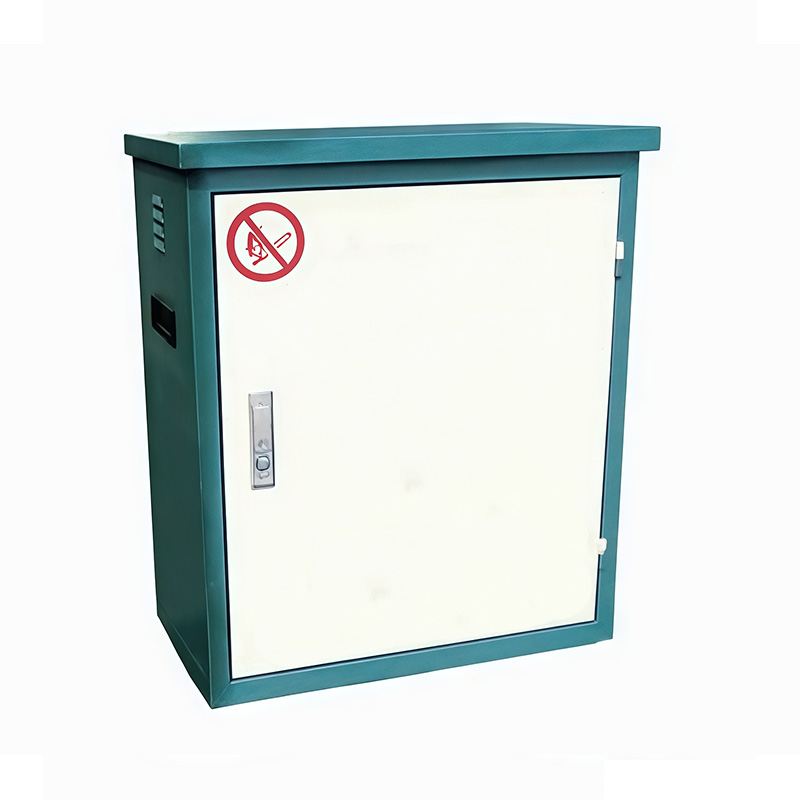

RX0.4/*A-QI1 Series Building Regulator Box
Get In Touch →Product Application

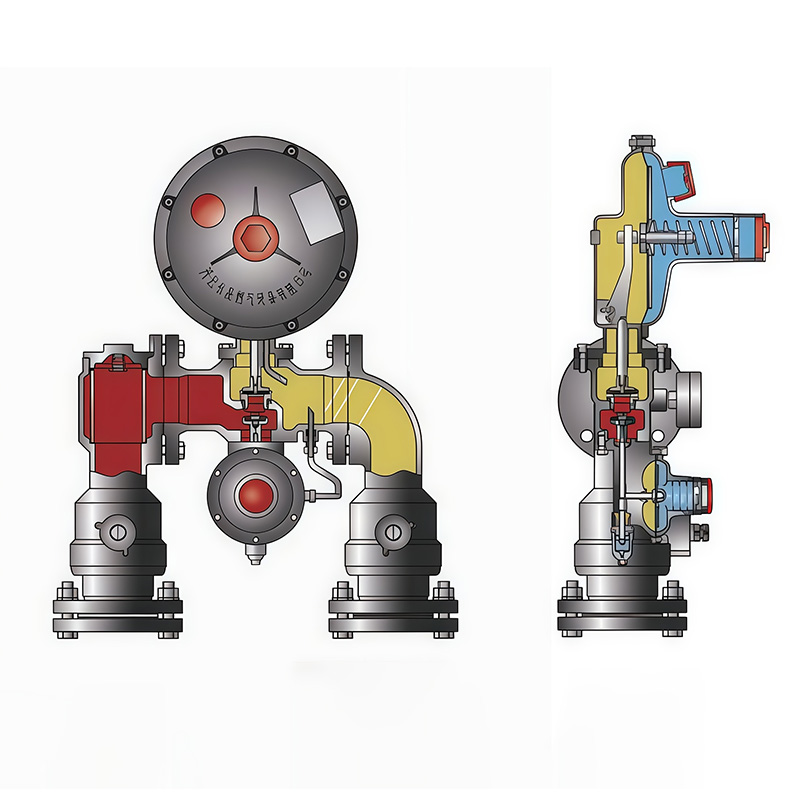

RX0.4/*A‑QⅡ series building‑mounted gas pressure regulating boxes are used for pressure regulation in buildings or unit living areas, and can also be applied to industrial users such as medium‑sized furnaces. Such pressure regulators are equipped with over‑pressure automatic cut‑off and over‑pressure relief devices with manual reset.
Product Features
Compact size, large flow capacity, stable performance, high safety and reliability, and wide adaptability to gas types. It can also be assembled with various valves and safety valves into box‑type pressure regulating boxes of single‑circuit plus bypass, double‑circuit plus bypass with safety relief.
Main Technical Parameters
Inlet pressure P₁: 0.02‑0.4 MPa Outlet pressure P₂: 2‑30 kPa Voltage regulation accuracy: AC10, AC15 Cut‑off pressure: 4‑45 kPa Lock‑up pressure class: SG20, SG25 Operating temperature: -20℃‑60℃
RX0.4/*A‑50Q Ⅱ Flow Table (MPa)
Note: The flow rates in the table are under standard conditions, with natural gas relative density of 0.6.
