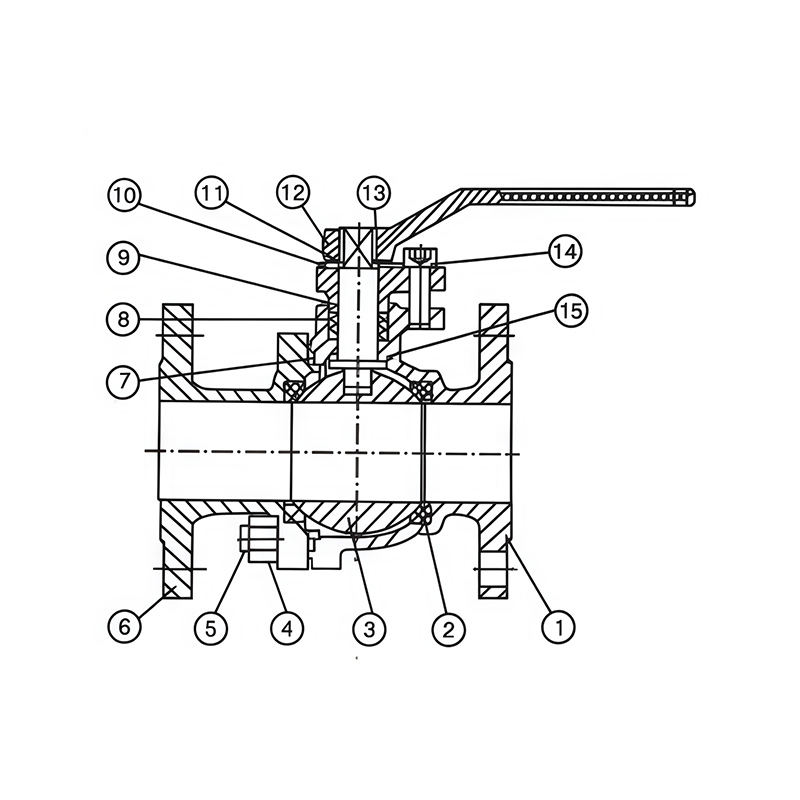

Gas soft-sealed floating ball valve

Product Overview

The soft-seated floating ball valve for gas manufactured by our company adopts a single-inclined-plane elastic sealing ring or V-groove elastic sealing ring structural design. When the medium pressure is low, the contact area between the sealing ring and the ball is small, generating a high sealing specific pressure to ensure reliable sealing. When the medium pressure rises, the contact area between the sealing ring and the ball increases, allowing the sealing ring to withstand high medium pressure without damage. Sealing ring materials such as PTFE feature excellent self-lubricating performance and low friction wear against the ball, contributing to a long service life.

Applicable Media: Water, gas, oil products, natural gas, acidic and alkaline corrosive media

Driving Modes: Manual, pneumatic, electric, hydraulic, etc.

Applicable Temperature: -196~350℃

Nominal Diameter: DN15~250mm (1/2"~10")

Applicable Standards

Main Component Materials
