Soft-sealed fixed ball valve

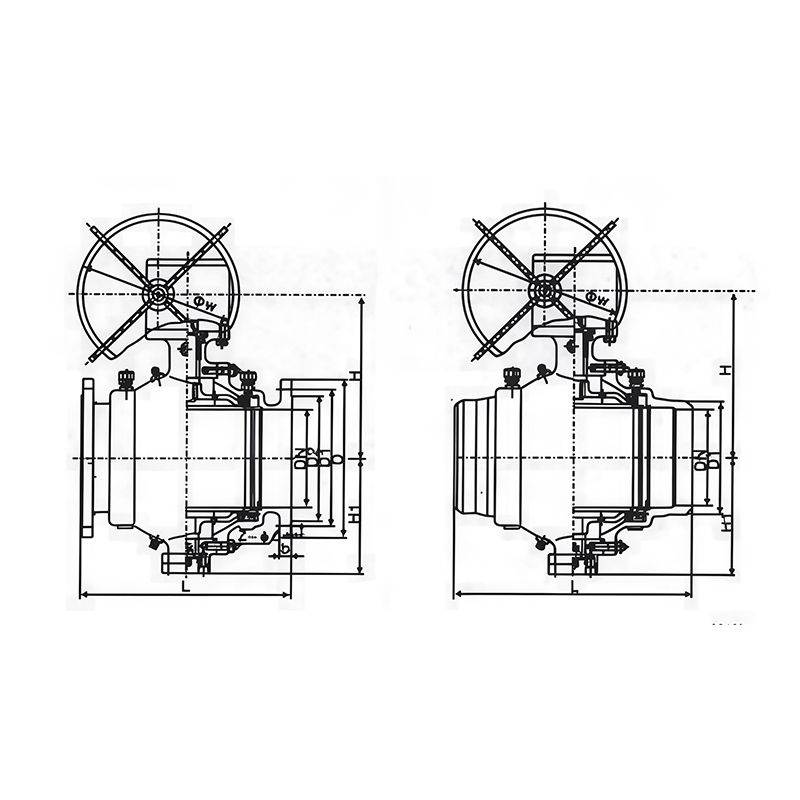

Nominal Pressure Main Overall Dimensions PN1.6, 2.5MPa Unit: mm	Nominal Diameter	Dimensions
	Nominal Diameter	L	d1	D	D1	D2	b	f	Z-Φd0	W Manual	H Type 347	H Type 647
1.6	15	140	15	95	65	45	14	2	4-14	130	—	—
	20	152	20	105	75	55	14	2	4-14	170	—	—
	25	165	25	115	85	65	14	2	4-14	170	—	—
	32	178	32	135	100	78	16	2	4-18	25	—	—
	40	190	40	145	110	85	16	2	4-18	25	—	—
	50	220	50	160	125	100	16	3	4-18	250	—	—
	65	241	65	180	145	120	18	3	4-18	350	—	—
	80	283	80	195	160	135	20	3	4-18	350	—	—
	100	305	100	215	180	155	20	3	4-18	420	—	—
	125	336	125	245	210	185	22	3	4-18	700	—	542
	150	394	150	280	240	210	24	3	8-23	1000	305	672
	200	457	200	335	295	265	28	3	12-23	1300	398	736
	250	533	250	405	355	320	30	3	12-25	1800	495	890
	300	610	300	460	410	375	30	4	12-25	—	580	910
	350	686	350	520	470	435	34	4	16-25	—	625	1020
	400	762	400	580	525	485	36	4	16-30	—	720	1080
	450	846	450	640	585	545	40	4	20-30	—	770	1120
	500	914	500	705	650	608	44	5	20-34	—	840	1150
	600	1067	600	840	770	718	48	5	20-41	—	920	1230
	700	1245	700	910	840	788	50	5	24-41	—	990	1310
2.5	15	140	15	95	65	45	14	2	4-14	130	—	—
	20	152	20	105	75	55	14	2	4-14	170	—	—
	25	165	25	115	85	65	16	2	4-14	170	—	—
	32	178	32	135	100	78	16	2	4-18	200	—	—
	40	190	40	145	110	85	18	2	4-18	250	—	—
	50	220	50	160	125	100	20	3	4-18	250	—	—
	65	241	65	180	145	120	22	3	4-18	350	—	—
	80	283	80	195	160	135	22	3	4-18	350	—	—
	100	305	100	230	190	160	24	3	8-23	420	—	418
	125	381	125	270	220	188	28	3	8-25	700	—	542
	150	403	150	300	250	218	30	3	8-25	1000	305	572
	200	502	200	360	310	278	34	3	12-25	1300	398	736
	250	588	250	425	370	332	36	3	12-30	1800	495	890
	300	648	300	485	430	390	40	4	16-30	—	580	910
	350	762	350	550	490	448	44	4	16-34	—	625	1020
	400	838	400	610	550	505	48	4	16-34	—	720	1080
	450	914	450	660	600	555	50	4	20-34	—	770	1120
	500	991	500	730	660	610	52	5	20-41	—	840	1150
	600	1143	600	840	770	718	56	5	20-41	—	920	1230
	700	1346	700	955	875	815	60	5	24-48	—	990	1310
