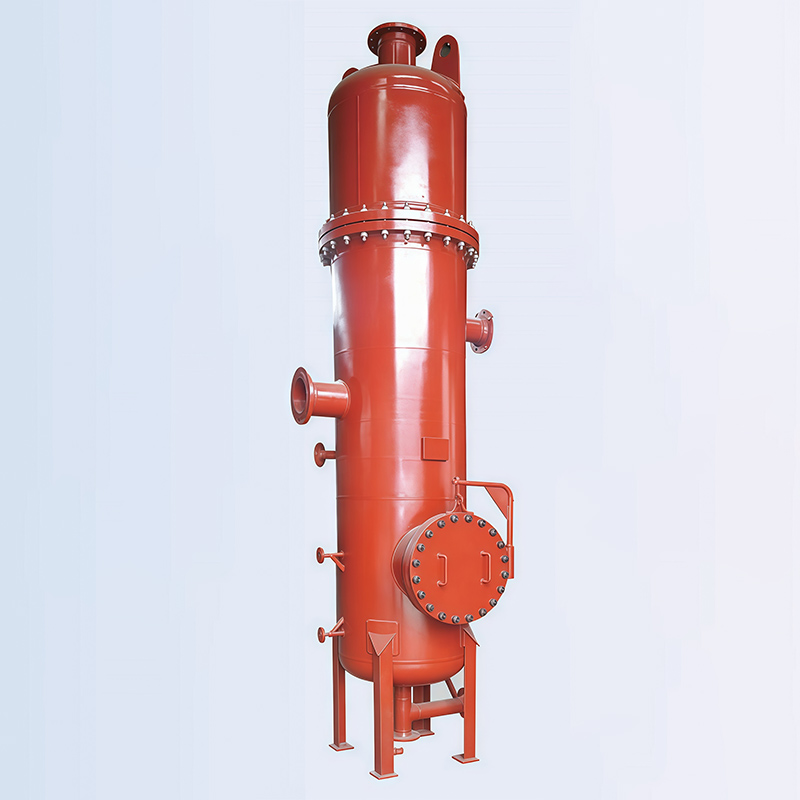

Swirl Separator

Cyclone Separator

Overview

The cyclone separator is a high-efficiency gas-solid-liquid separation equipment developed on the basis of cyclone separators. It is widely applicable for high-efficiency separation of gas-liquid and gas-solid-liquid mixtures.

Working Principle

The cyclone separator organically integrates technologies such as centrifugal separation and filtration separation, avoiding liquid film shearing, re-atomization, liquid entrainment, entrainment, suction and secondary fragmentation. During separation, gas enters the cyclone under a certain pressure, rotates and flows axially downward. Under centrifugal force, most liquid and solid particles are thrown toward the wall at the lower part of the cylinder. As gas flows out of the cyclone, the flow cross-section gradually expands and the flow velocity decreases. Liquids and solids are discharged along the vessel wall to realize gas-liquid or gas-solid separation.

After separation, the gas flows into the outlet pipe and passes through a mist eliminator for secondary separation. Small entrained liquid droplets in the gas coalesce into large droplets, which fall by gravity and flow through the guide pipe into the liquid accumulation chamber. Finally, separated solid particles and liquid are discharged via the drain port, and the treated gas exits through the gas outlet.

Technical Parameters

Design Standard: GB/T150-2024 Pressure Vessel Structure Type: Vertical and Horizontal Connecting Flange Standard: HG/T20592 ~ HG/T20615-2009 or ANSI B16.5, etc. Material Standard: Steel Plate: Q345R GB/T713-2023 Forging: 16Mn NB/T47008-2017

Performance Indicators

Design Pressure: ≤ 10 MPa Design Temperature: -40℃ ~ 80℃ Pressure Drop: ＜ 0.05 MPa Separation Accuracy: Removable solid particles ≥ 3–5 μm Removable liquid particles ≥ 8–10 μm Separation Efficiency: At design operating point, the separation efficiency for solid and liquid particles reaches 99% simultaneously; Within ±15% of the design operating point, the separation efficiency is 97%. Flow Fluctuation Range: 40% ~ 120%

Application Scope

Primary separation of natural gas and coalbed methane; removal of desiccant particles downstream of drying beds;

removal of catalyst powder downstream of catalytic beds; applicable to metering and pressure regulating stations;

used in urban gas distribution systems.

Features of Cyclone Separator

(1) High separation efficiency for liquid and solid particles. Through numerical shaping of the flow channel, the cyclone separator achieves more regular fluid flow inside the separation elements, reaching an optimal state for gas-liquid and gas-solid separation. The shaping of fluid flow in separation elements eliminates adverse effects such as liquid entrainment, shear fragmentation, gas flow atomization and re-entrainment, ensuring stable separation efficiency of the equipment.

(2) High flexibility with a flow fluctuation range of 40–120%, adapting to particle distribution conditions of inlet gas. Adopting special separation elements, the cyclone separator maintains highly regular fluid flow and favorable flow patterns even under low gas flow rates and low gas velocities, securing high separation efficiency across a wide flow range.

(3) Low pressure drop and large processing capacity. Optimized with preferred curved profiles for separation elements, the core components can be customized for different flow rates and working conditions. This ensures the cyclone separator features low pressure drop (5–30 kPa) and large throughput.

Specification Explanation

DN800/DN250—PN25 — Main cylinder diameter DN800 / inlet & outlet diameter DN250 PN25 — Design pressure 2.5 MPa

Installation and Connection

The cyclone separator supports horizontal and vertical installation. For horizontal installation, the main axis levelness shall be less than 5/1000; for vertical installation, the main axis verticality tolerance shall be less than 3/1000. The equipment adopts flange connection, equipped with vent valve, safety valve, liquid level gauge, pressure gauge, blowdown valve and other accessories.

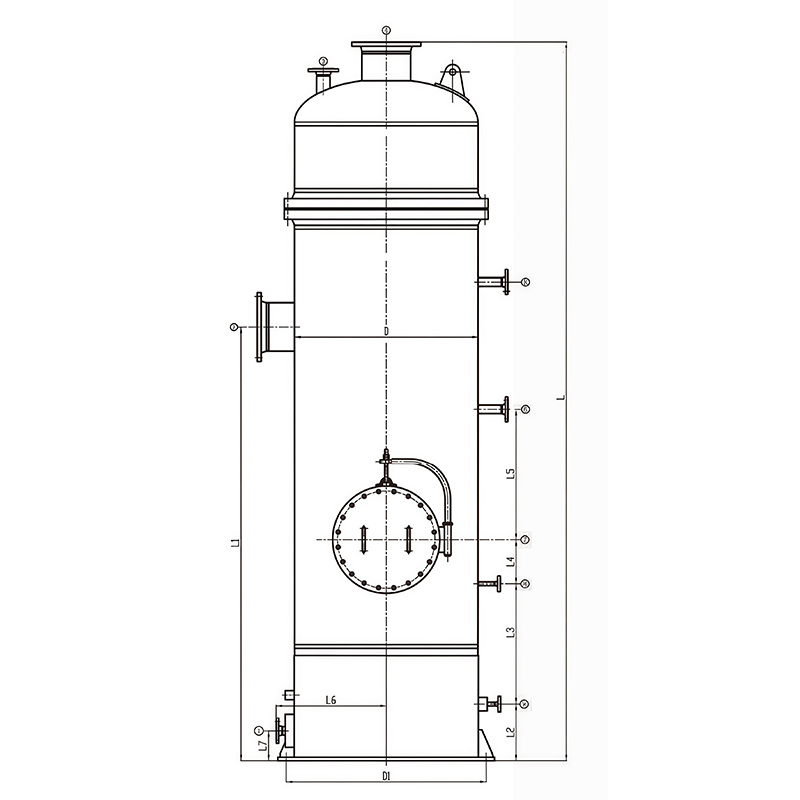

Structural Dimensions of Cyclone Separator (mm)
