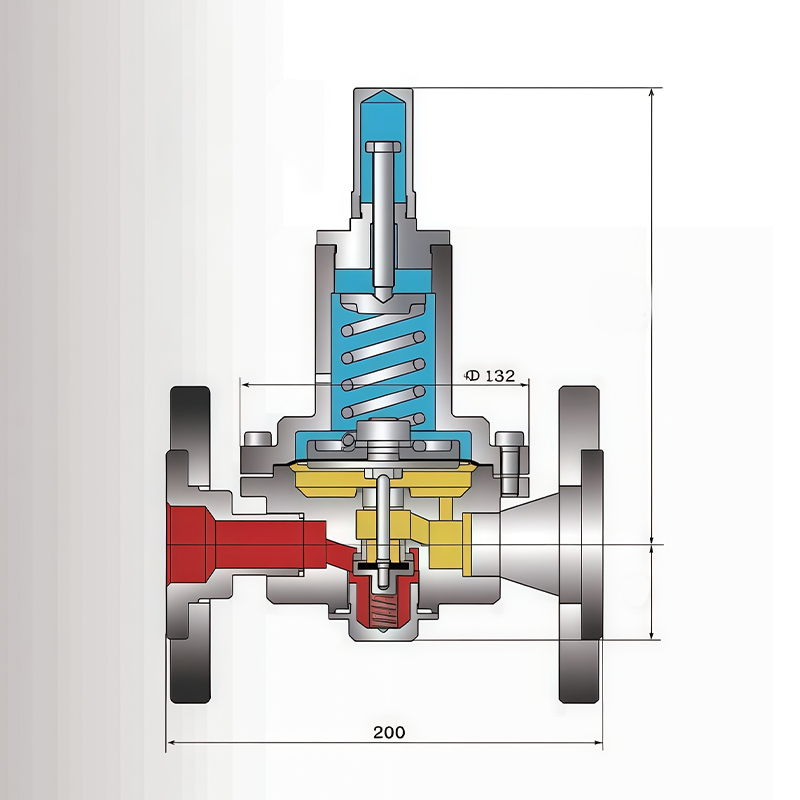

RTZ1-*/1.6XG Series Gas Regulator
Get In Touch →Product Application
The RTZ1-*/1.6XG direct-acting regulator is applicable for high and medium pressure regulation and pressure stabilization in mining areas, well sites, primary pressure regulation of liquefied gas, and gas distribution for residential communities.
Product Features
Capable of large pressure differential and low flow; stable performance, safe and reliable, easy for installation and maintenance. Suitable for natural gas, coal gas, liquefied petroleum gas and other non-corrosive gases.
Technical Characteristics
Inlet pressure P₁: ≤1.6 MPa Outlet pressure P₂: 0.05–0.4 MPa Operating temperature: -20°C ~ 60°C Pressure regulation accuracy class: AC10 Lock-up pressure class: SG20 Nominal flow: 20–100 Nm³/h Nominal diameter: DN15, DN20, DN25, DN40, DN50
Main Technical Parameters
| Model Specification | Nominal Diameter DN (mm) | Inlet & Outlet Connection |
|---|---|---|
| RTZ1-*/1.6XG Medium & High Pressure Regulator | 15, 20, 25, 40, 50 | Loose flange connection, PN16 |
