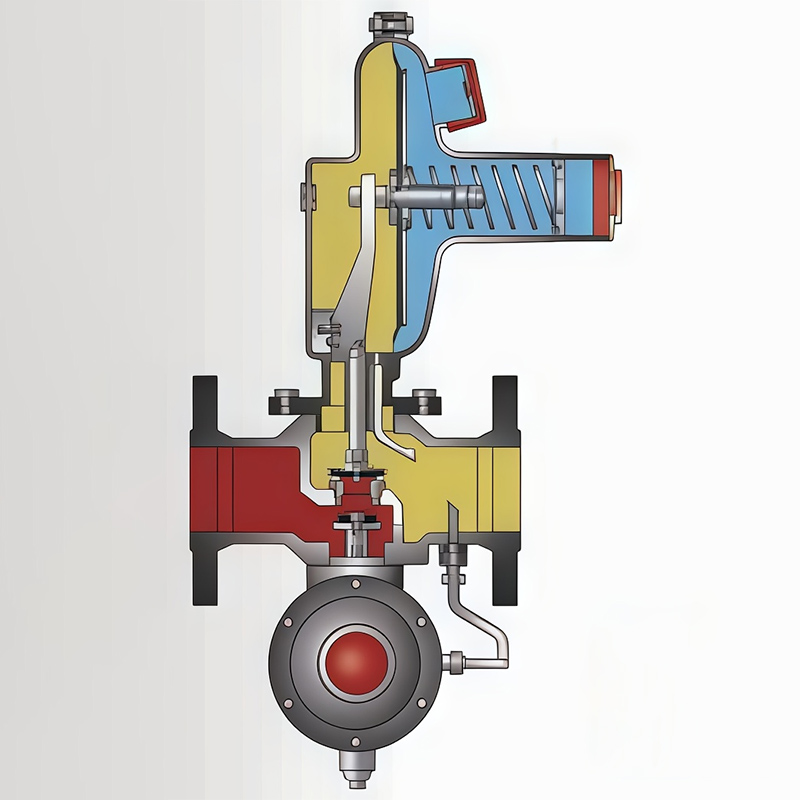

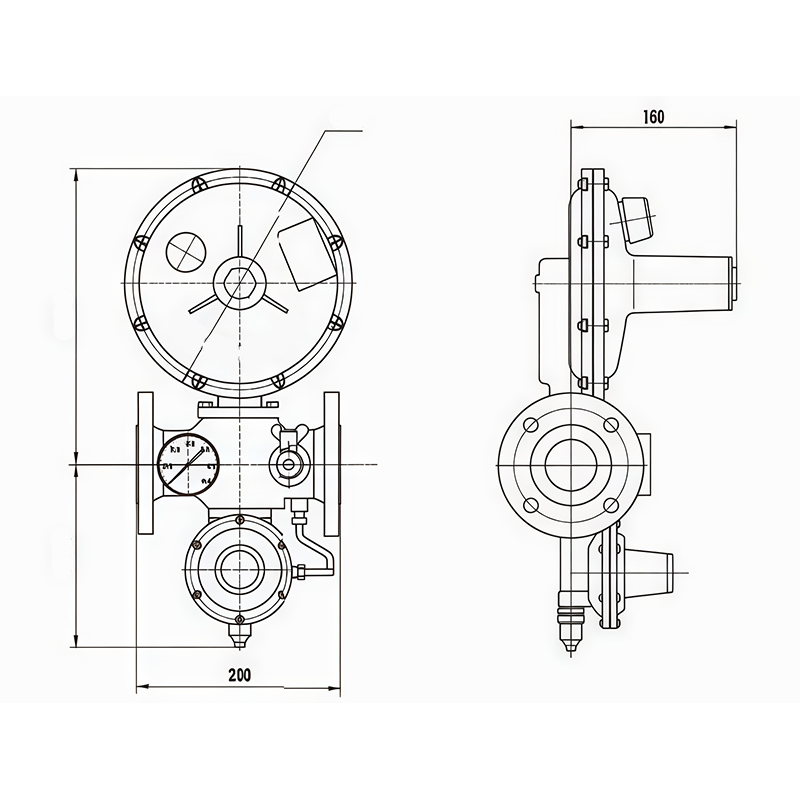

RTZ1-50/0.4LQ Gas Regulator
Get In Touch →Overview
This product is suitable for gas supply to residential communities, commercial and industrial users. It can be assembled into different types of pressure regulating boxes. Applicable media include natural gas, coal gas, liquefied petroleum gas, etc.
Features
Built‑in safety relief valve, integrated over‑pressure safety shut‑off valve with manual reset, safe and reliable.
Technical Parameters
Inlet Pressure Range P₁: 0.02‑0.4 MPa Outlet Pressure Range P₂: 2‑30 kPa Pressure Stabilization Accuracy Class: AC10, AC15 Lock‑up Pressure Class: SG20, SG25 Operating Temperature: -20℃‑60℃ Connection Nominal Diameter: DN50, PN6, PN16
RTZ1‑50/0.4LQ Flow Capacity Table (MPa)
