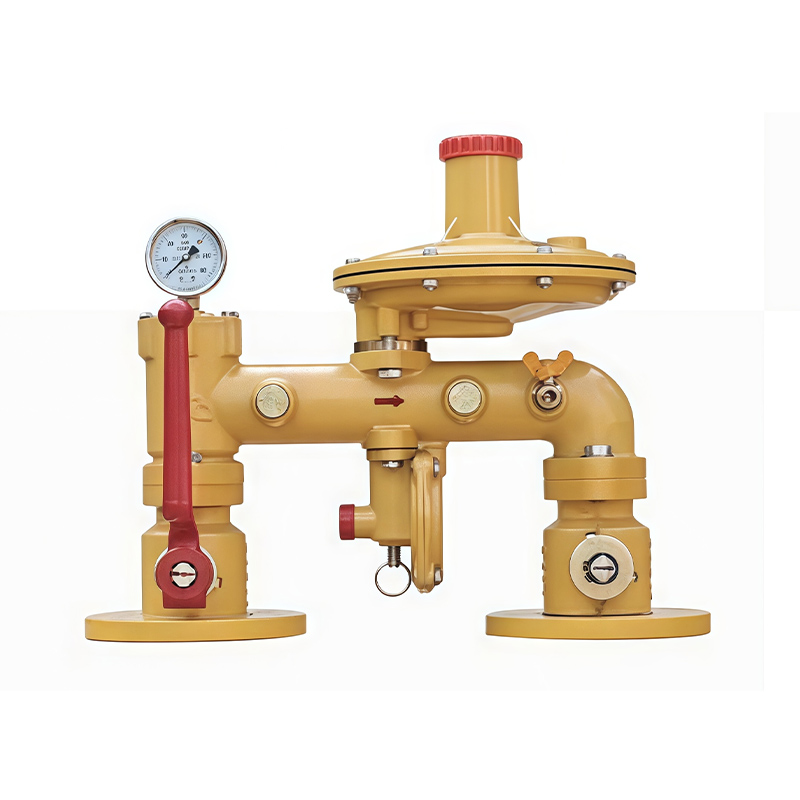

RXO.4/*A-Q-X Series Building Regulator Box
Get In Touch →Product Application
RX0.4/*A‑Q‑X series building pressure regulating boxes are applied for pressure regulation in buildings or unit living areas, and can also provide pressure‑regulated gas supply for small‑scale industrial users.
Product Features
Compact size, large flow capacity and stable performance. Equipped with built‑in over‑pressure cut‑off and built‑in relief functions for high safety and reliability.
Main Technical Parameters
Inlet pressure P₁: 0.02‑0.4 MPa Outlet pressure P₂: 2‑10 kPa (expandable to 30 kPa) Pressure regulating accuracy class: AC5, AC10 Lock‑up pressure class: SG15, SG20 Operating temperature: -20℃‑60℃ Connection size: DN25/DN25, DN25/DN40, DN40/DN40, DN40/DN50, DN50/DN50
Outline Dimension Drawing
Installation Dimension Table for RX0.4/*A‑Q‑X Series Building Pressure Regulating Box
RX0.4/*A‑25Q‑X Flow Table (MPa) Size: DN25/DN25
Note: The flow values in the table are measured under standard conditions with natural gas relative density of 0.6.
RX0.4/*A‑25Q‑X Flow Table (MPa) Size: DN25/DN40
Note: The flow values in the table are measured under standard conditions with natural gas relative density of 0.6.
RX0.4/*A‑40Q‑X Flow Table (MPa) Size: DN40/DN40
Note: The flow values in the table are measured under standard conditions with natural gas relative density of 0.6.
RX0.4/*A‑40(50)Q‑X Flow Table (MPa) Size: DN40(50)/DN50
Note: The flow values in the table are measured under standard conditions with natural gas relative density of 0.6.
RX0.4/*A‑40(50)Q‑X Flow Table (MPa) (17.5 Orifice)
Size: DN40(50)/DN50
Note: The flow values in the table are measured under standard conditions with natural gas relative density of 0.6.
