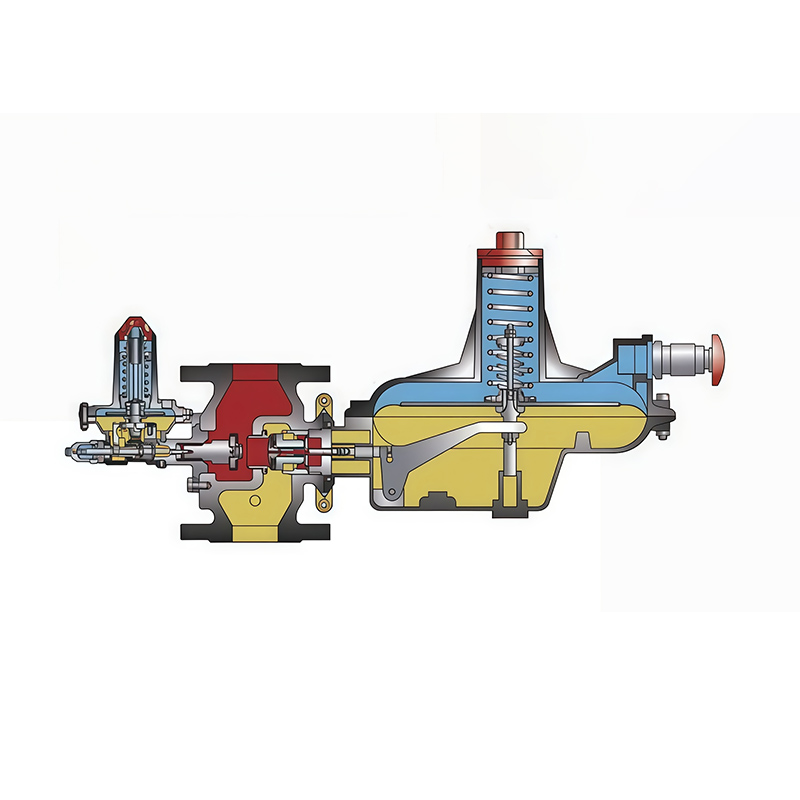

RTZ1-50/0.4(1.6)TQ Gas Regulator
Get In Touch →Overview
This product is applicable for gas supply to residential communities, commercial and industrial users. It can be assembled into various types of pressure regulating boxes. Applicable media include natural gas, coal gas, liquefied petroleum gas, etc.
Features
Internal balancing valve, built‑in safety relief valve, integrated over‑pressure safety shut‑off valve with manual reset, safe and reliable.
Technical Parameters
Inlet Pressure Range P₁: 0.02‑0.4 MPa/(0.4‑1.6 MPa)
Outlet Pressure Range P₂: 2‑30 kPa
Pressure Stabilization Accuracy Class: AC5, AC10
Lock‑up Pressure Class: SG10, SG15
Operating Temperature: -20℃‑60℃
Connection Nominal Diameter: DN30, PN10
RTZ1‑50/*TQ Direct‑acting Gas Pressure Regulator
RTZ1‑50/0.4TQ Flow Capacity Table (MPa)
Note: The flow values in the table are obtained under standard conditions with natural gas relative density of 0.6.
RTZ1‑50/1.6TQ Flow Capacity Table (MPa)
Note: The flow values in the table are obtained under standard conditions with natural gas relative density of 0.6.
