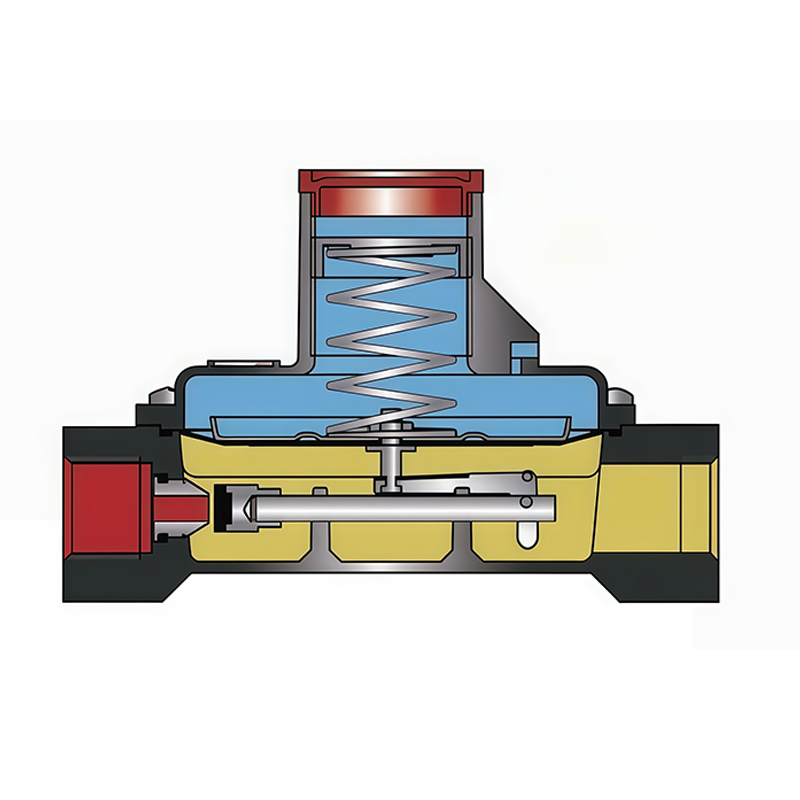

RTZB-15/*L Series Pre-meter Gas Regulator
Get In Touch →Overview
This product is mainly used for medium-pressure inlet pressure regulation and pressure stabilization of additional pressure heads in high-rise residential buildings for civil gas distribution systems. It can also be applied to gas facilities of industrial and mining enterprises, canteens, restaurants and other collective and public welfare institutions, and can be installed as a regulating valve in air systems.
Applicable Media
Natural gas, coal gas, liquefied petroleum gas, straw gas and other non-corrosive gases.
Product Features
Compact size, light weight, simple structure, easy installation and maintenance; accurate pressure control, fast response and stable performance.
Main Technical Parameters
Inlet Pressure: 0.005-0.2 MPa
Outlet Pressure: 1-5 kPa
Nominal Flow: 6 Nm³/h
Pressure Stabilization Accuracy Class: AC15
Lock-up Pressure Class: SG25
Operating Temperature: -20-60℃
Nominal Diameter: DN15 (internal thread connection)
