Quick Opening Closure for Pressure Vessels

Quick Opening Blind Plate for Pressure Vessels

Overview

As a pressure component, the quick opening blind plate for pressure vessels is widely applied in pressure vessels, pressure pipelines and assemblies. It enables rapid opening of pressure vessels to facilitate equipment maintenance as well as replacement and repair of internal components.

Design Standards

GB/T150-2024 Pressure Vessels or GB/T4732-2024 Analytical Design of Pressure Vessels

Main Materials

Carbon steel and low alloy steel forgings

Sealing material: Fluororubber

Technical Parameters

Design Pressure: ≤10 MPa

Design Temperature: -40℃ ~ 80℃

Nominal Diameter: DN150–DN1200

Structure Type: Vertical, Horizontal

Opening Mode: Manual, Electric

Inspection

Non-destructive Testing Testing Method: 100% UT

(Ultrasonic Testing) 100% MT (Magnetic Particle Testing)

Features

Excellent sealing performance Flexible opening Integral structure, safe and reliable Compact structure, small size and easy installation Equipped with safety interlocking device

Application

Classified into vertical type and horizontal type according to different structures. It can replace manholes of pressure vessels, and be used for quick opening doors of pigging receivers/launchers, filters (separators), vulcanizing tanks, etc.

Structure Type

Type V – Vertical installation of equipment Type H – Horizontal installation of equipment

Marking Explanation

HLM XXX – PNXX – V HL – Registered trademark “Hengliang” of Hebei Yongliang M – Quick opening blind plate

Example: HLM800-PN25-V – DN80 nominal diameter PN25 – Design pressure 2.5 MPa V – Vertical quick-opening structure

Installation and Connection

Two installation types are available: horizontal installation and vertical installation. For horizontal installation, the non-perpendicularity of the rotation spindle of the blind cover shall be less than 5/1000. For vertical installation, the non-perpendicularity of the center line of the blind cover shall be less than 3/1000.

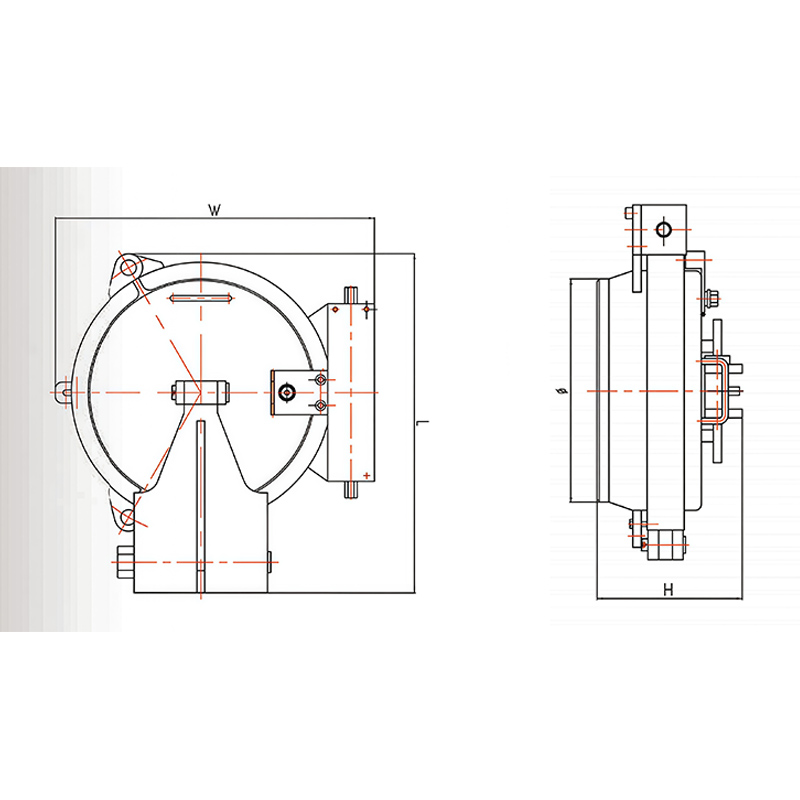

Structural Dimension Table for Horizontal Quick Opening Blind Plates

Nominal Diameter DN (mm)	Connection Diameter Φ (mm)	2.5 MPa				4.0 MPa				6.3 MPa				10.0 MPa
H	W	L	G (Kg)	H	W	L	G (Kg)	H	W	L	G (Kg)	H	W	L	G (Kg)
DN150	159	150	340	370	65	150	352	385	74	165	323	352	88	173	341	360	98
DN200	219	150	375	405	81	150	389	425	88	178	312	406	114	193	430	457	125
DN250	273	150	420	452	98	150	434	483	109	185	440	502	128	213	494	543	142
DN300	325	168	538	516	108	168	507	549	115	190	533	574	136	238	580	612	175
DN350	377	173	604	598	135	173	576	611	128	200	593	639	155	266	636	680	222
DN400	426	182	620	650	155	182	635	675	172	212	679	733	211	295	735	769	337
DN450	457	197	688	739	170	215	730	754	210	230	746	779	285	310	807	835	437
DN500	530	220	754	781	222	220	774	796	233	240	815	840	341	320	870	933	569
DN550	559	220	818	874	261	241	825	882	314	256	850	942	457	335	941	974	624
DN600	630	234	895	930	338	257	906	952	415	270	959	1002	589	358	988	1035	777
DN700	720	494	1019	1072	400	508	1045	1098	488	568	1034	1146	745	450	1151	1211	1197
DN800	820	529	1135	1190	488	565	1183	1233	692	650	1219	1255	1047	690	1296	1357	1530
DN900	920	579	1286	1346	600	592	1321	1385	842	722	1416	1470	1585	766	1450	1513	2039
DN1000	1020	602	1415	1462	825	637	1424	1490	1055	753	1434	1539	1858	815	1572	1617	2555
DN1100	1120	650	1545	1620	1018	685	1590	1630	1508	8015	1610	1715	2452	860	1690	1799	3965
DN1200	1220	693	1673	1737	1281	773	1735	1794	1940	845	1716	1847	2892	965	1894	1927	4478

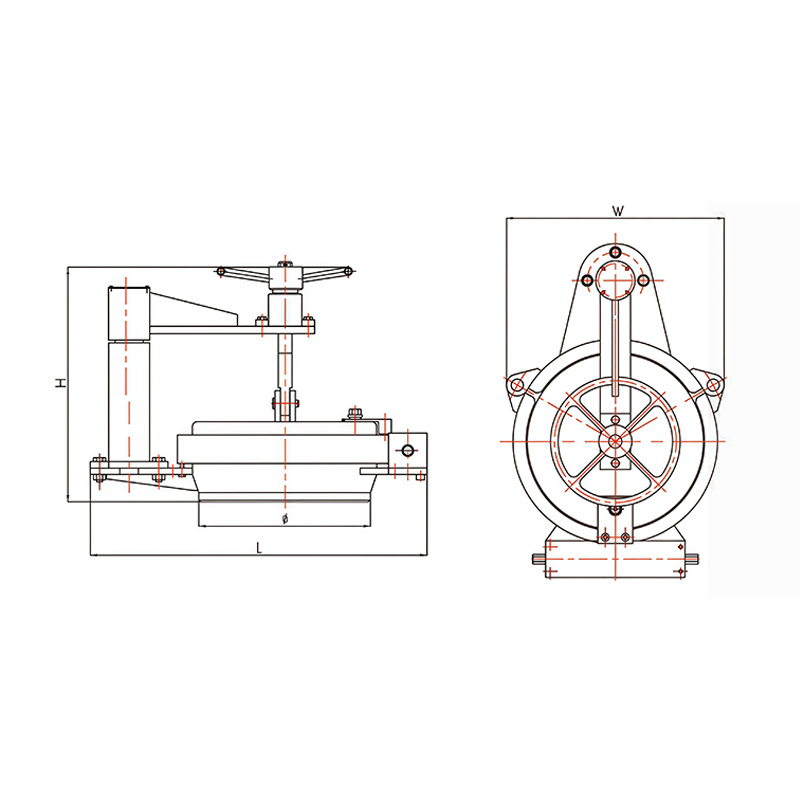

Structural Dimension Table for Vertical Quick Opening Blind Plates

Nominal Diameter DN (mm)	Connection Diameter Φ (mm)	2.5 MPa				4.0 MPa				6.3 MPa				10.0 MPa
H	W	L	G (Kg)	H	W	L	G (Kg)	H	W	L	G (Kg)	H	W	L	G (Kg)
DN150	159	380	340	370	70	380	352	385	79	380	323	352	88	380	341	360	98
DN200	219	380	375	405	86	380	389	500	93	380	382	406	114	380	430	457	125
DN250	273	420	420	452	103	420	434	590	114	420	440	502	128	420	494	543	142
DN300	325	420	538	516	113	420	507	680	120	420	538	574	136	420	580	612	175
DN350	377	420	604	598	140	420	576	720	128	420	598	639	155	420	636	680	222
DN400	426	485	620	650	160	485	635	830	172	485	679	733	211	485	735	769	337
DN450	457	485	688	739	175	485	730	850	210	485	746	779	285	485	807	835	437
DN500	530	520	754	781	227	520	774	865	233	520	815	840	341	520	870	933	569
DN550	559	520	818	874	271	520	825	882	314	520	890	942	457	520	941	974	624
DN600	630	540	895	930	338	540	906	952	415	540	959	1002	589	540	988	1035	777
DN700	720	580	1019	1072	410	580	1045	1098	488	580	1084	1146	745	580	1151	1211	1197
DN800	820	580	1135	1190	498	580	1183	1233	692	580	1219	1255	1047	580	1296	1357	1530
DN900	920	640	1286	1346	610	640	1321	1385	842	640	1416	1470	1585	640	1450	1513	2039
DN1000	1020	640	1415	1462	845	640	1424	1490	1055	640	1494	1539	1858	640	1572	1617	2555
DN1100	1120	680	1545	1620	1049	680	1590	1630	1508	680	1610	1715	2452	680	1690	1799	3965
DN1200	1220	680	1673	1737	1321	680	1735	1794	1940	680	1796	1847	2892	680	1894	1927	4478
